In the DevOps space, it’s really tempting to hit everything with the automation stick. However, I’d argue there are plenty of valid reasons for wanting a human in the loop. If you’re part of a platform team, you’ll be used to balancing the needs and desires of multiple teams - especially when it comes to Identity and Access Management (IAM). In this post, we’re going to explore how we can use data you’re (hopefully) already collecting to understand what’s happening in our AWS organization, and to attempt to preempt user needs and requests.

Wanting to skip straight to the code? Check out the solution on GitHub.

CloudTrail

If you’ve missed it, CloudTrail is an AWS Service that records an audit log of API calls. It’s really easy to setup, can aggregate API calls from all accounts in an AWS organization, and is cost-effective to boot.

This article assumes that you’ve configured CloudTrail in the organization management account to aggregate all API calls into a single S3 bucket.

Here’s an example CloudTrail log:

{
  "eventVersion": "1.09",
  "userIdentity": {
    "type": "AssumedRole",
    "principalId": "AROAT2EYEKAEIO6FE237W:james@jsherz.com",
    "arn": "arn:aws:sts::123123123123:assumed-role/AWSReservedSSO_administrator-access_0c88b0f85221b941/james@jsherz.com",
    "accountId": "123123123123",
    "accessKeyId": "ASIAT2EYEKAEBTRIY4VI",
    "sessionContext": {
      "sessionIssuer": {
        "type": "Role",
        "principalId": "AROAT2EYEKAEIO6FE237W",
        "arn": "arn:aws:iam::123123123123:role/aws-reserved/sso.amazonaws.com/eu-west-1/AWSReservedSSO_administrator-access_0c88b0f85221b941",
        "accountId": "123123123123",
        "userName": "AWSReservedSSO_administrator-access_0c88b0f85221b941"
      },
      "attributes": {
        "creationDate": "2023-10-24T20:20:48Z",
        "mfaAuthenticated": "false"
      }
    }
  },
  "eventTime": "2023-10-24T20:20:50Z",
  "eventSource": "support.amazonaws.com",
  "eventName": "DescribeTrustedAdvisorChecks",
  "awsRegion": "us-east-1",
  "sourceIPAddress": "123.123.123.123",
  "userAgent": "Mozilla/5.0 (X11; Linux x86_64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/118.0.0.0 Safari/537.36",
  "errorCode": "AccessDenied",
  "errorMessage": "User: arn:aws:sts::123123123123:assumed-role/AWSReservedSSO_administrator-access_0c88b0f85221b941/james@jsherz.com is not authorized to perform: support:DescribeTrustedAdvisorChecks with an explicit deny in a service control policy",
  "requestParameters": null,
  "responseElements": null,
  "requestID": "54d4f88c-3097-449a-8fb7-aa59b37646d2",
  "eventID": "675a51b3-9706-45ec-88ce-1de54a23649f",
  "readOnly": true,
  "eventType": "AwsApiCall",
  "managementEvent": true,
  "recipientAccountId": "123123123123",
  "eventCategory": "Management",
  "tlsDetails": {
    "tlsVersion": "TLSv1.2",
    "cipherSuite": "ECDHE-RSA-AES128-GCM-SHA256",
    "clientProvidedHostHeader": "support.us-east-1.amazonaws.com"
  },
  "sessionCredentialFromConsole": "true"
}

If we zoom in to the errorMessage, we can see that this API call was blocked as the result of a Service Control Policy (SCP):

User: …james is not authorized to perform: support:DescribeTrustedAdvisorChecks with an explicit deny in a service control policy

What can we learn from unauthorised API calls?

We’re not trying to detect security breaches or users doing things they’re not supposed to in this solution. Instead, we’re looking for the following:

• API activity in regions we don’t expect;

  This could be user error, or could indicate a region should be enabled / allowed for a particular workload.

• Users trying to use new services;

  It’s very likely that users will be faster than a platform team to try new services - probably before everything’s in place to allow them access.

  If it makes sense for the new service to be enabled in an SCP, we can add this to our todo list and get it enabled before the user demand really kicks in. One example of this is the User Notifications service that AWS launched to let users centralise and customise notifications.

• AWS API calls that have changed IAM actions;

  AWS occasionally switches to new IAM actions for the same operations, or to achieve the same objective. An example of this would be the AWS portal changes that introduced the migration from aws-portal to billing, accounts, purchase-orders, and tax. Users might hit these permissions as they’re navigating around the AWS console, but still be able to achieve their goals. If this happens, they might not immediately report a problem, but we could still do with fixing the broken access.

• New API calls or IAM actions that have been added to services;

  Services are often expanding to include new IAM prefixes, for example the addition of pipes:*, scheduler:* or schemas:* to EventBridge. As above, a user clicking around in the console might hit these, and we can add them to relevant SCPs nice and quickly.

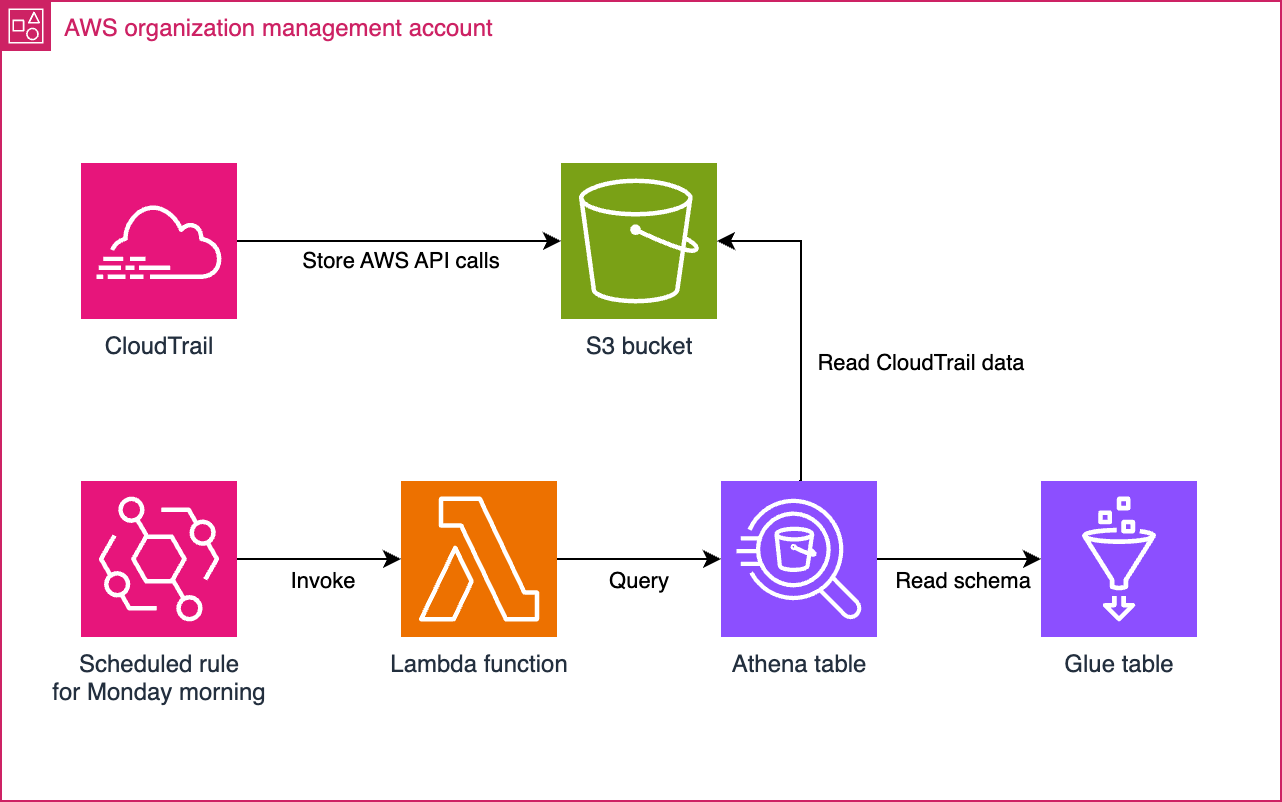

Solution architecture

When we talk about searching through CloudTrail data at scale, your mind might immediately jump to CloudTrail Lake. CloudTrail Lake lets you run SQL-like queries against CloudTrail data, and can store it for an impressive seven years! If you’re not doing a lot of searching of your CloudTrail data, the $2.50 / GB storage pricing (scales down above 5 TB) might feel a little prohibitive. We’re going to use Athena to search through the CloudTrail data you’ll already have stored in S3. We’ll only be charged per query, so we can try this solution and decide if it provides value before committing to the likes of CloudTrail Lake. The mapping of S3 data to fields in Athena will be stored in Glue, and the whole thing will be orchestrated with EventBridge and Lambda.

Our Lambda function will be triggered on a schedule, and will read the AWS account data from AWS Organizations. We need these account IDs as the S3 data is stored in the following format:

s3://<bucket name>/AWSLogs/<org ID>/<account ID>/CloudTrail/<region>/<YYYY>/<MM>/<DD>/

You can view the solution on GitHub, but we’re setting Athena up to scan only the data that is required to answer our query. If we provide the account IDs and regions, it can automatically calculate which “folders” in S3 it has to look through. It’s even smart enough to turn the timestamp as a date into every required value. For example, this query:

SELECT * FROM my_table
WHERE timestamp >= '2023/10/01'

Would look in all the folders from 2023/10/01, 2023/10/02, 2023/10/03, all the way up to the current date.

Here’s what our full Athena query will look like:

SELECT eventsource, eventname, COUNT(*) as num_occurrences
FROM cloudtrail
WHERE 1 = 1
-- Only look at the last period
AND timestamp >= '${startDate}'
-- Cause Athena to look through each auto-generated partition
AND account_id IN (
    '111111111111',
    '222222222222',
    -- ...
)
AND region IN ('eu-west-1', 'us-east-1')
-- Exclude Config as it's very noisy
AND sourceipaddress != 'config.amazonaws.com'
-- Only denied requests
AND errorcode IS NOT NULL
AND (
    errorcode LIKE '%AccessDenied%'
 OR errorcode LIKE '%Forbidden%'
 OR errorcode LIKE '%Unauthorized%'
)
GROUP BY eventsource, eventname
ORDER BY num_occurrences DESC;

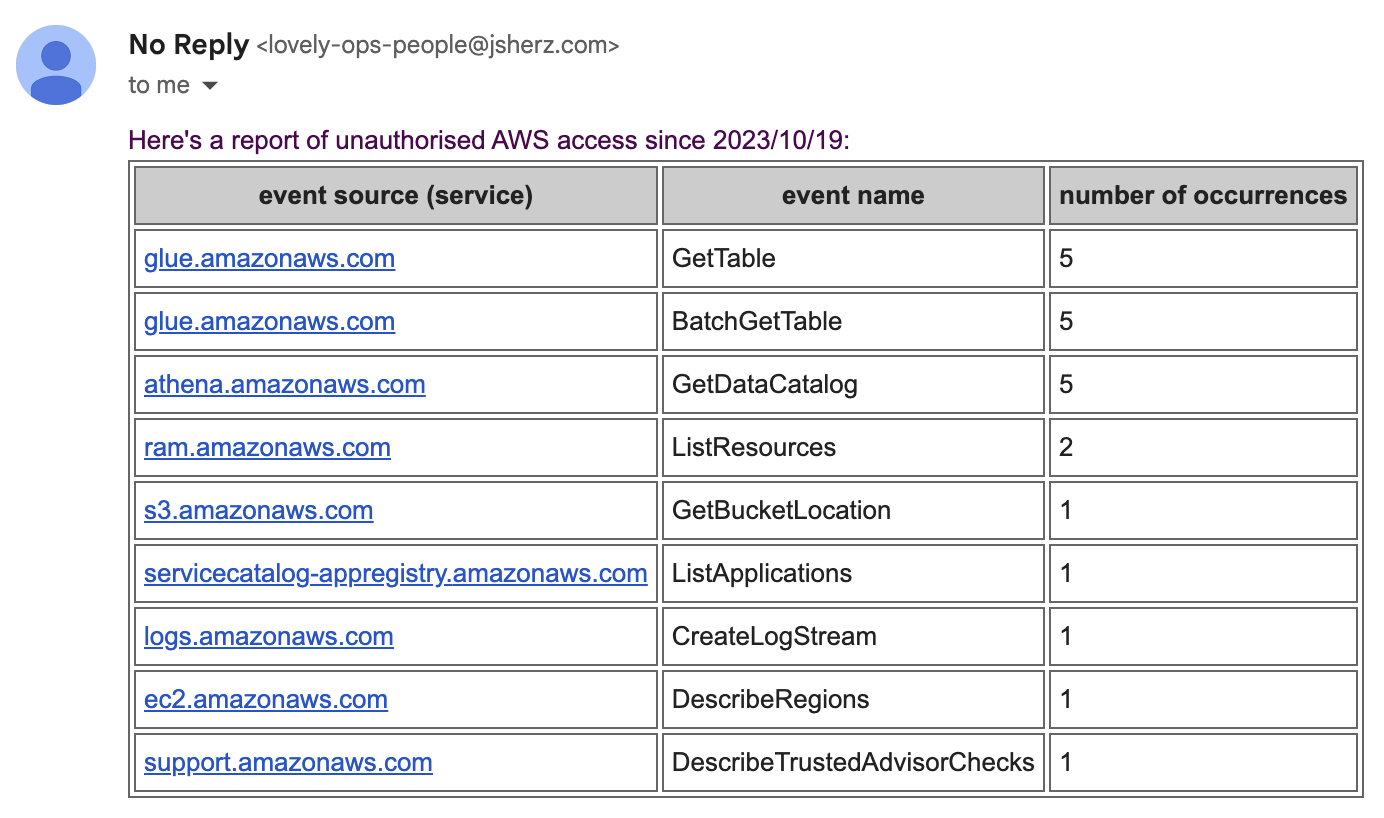

When it’s run successfully, we can send an e-mail report to a mailing list or distribution list of our choice, and review these by hand once a week (or a cadence that makes sense for your context):

That’s a wrap! If you think this could provide value in your team, check out the solution on GitHub.
